Edit Functions

Edward Updated by Edward

Fixture Library

The fixture library is the list of all available fixtures that can be patched in the software. Each fixture has an associated definition file that contains information about how NEO can manipulate its features.



The fixture editor is a separate program provided with NEO. You can use the graphical interface to add, remove or modify fixtures.



Edit Matrices

Documented in the section titled “Matrix Editor”.





Edit Profiles

Documented in the section titled “Edit Profiles”.

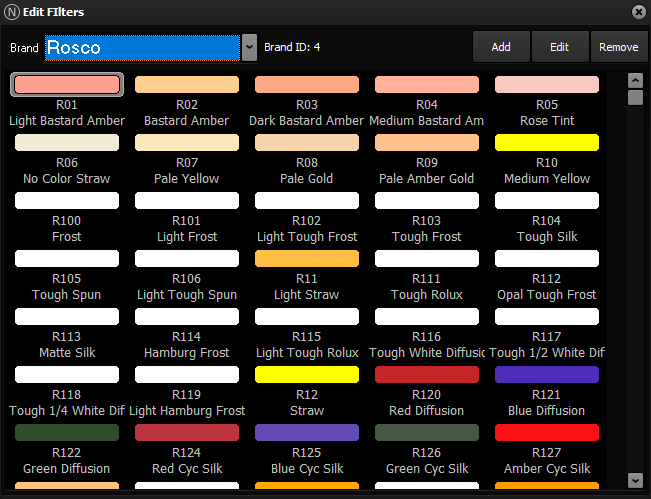

Edit Color Filters

NEO includes a library of popular color filters (gels) from several suppliers.  These can be used by the color picker to set fixtures capable of color mixing to the closest approximation of the selected filter.  New filters can be added to the library or current ones modified using this editor.

Use the “Brand” pull down to show only those filters of the selected supplier.

New filters can be added by use of the “Add” button, which brings up the following dialog:



Existing filters can be edited by selecting them and clicking on the “Edit” button which brings up the same dialog with some fields filled in.



Filters may be removed from the library by selecting them and using the “Remove” button.



NEO Notes & Tips: Some suppliers do not allow their filters to be modified or removed. A warning will be displayed if you try to edit any of those.  Adding new filters to a supplier’s catalog is permitted, but once added cannot be modified or removed.
