On & Out

Edward Updated by Edward

Once fixtures have been selected, you can perform some operations using the control options along the top of the channel display.

On

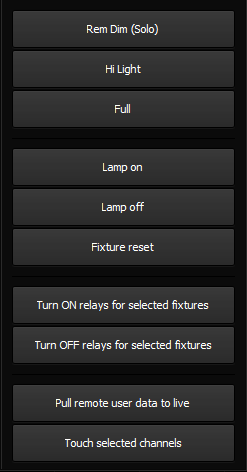

Applies the “ON” value to the selected fixtures. This button also has a menu that can be accessed by clicking the arrow to the right of the button. Use this menu for the following options:

Rem Dim (Solo) – Leaves selected fixtures at their current levels and set all others to zero intensity.

Hi Light – Sets the selected fixtures temporarily into a known state that will make them stand out to the operator (Ex: put a moving light in the home position with white light). This is a toggle function: first click turns on Hi Light mode, next click turns it off. The Hi Light button will change color to indicate it is active. See section titled Hi Light Button below for more information.

Full – Sets selected fixtures to 100% intensity.

Lamp On – Run the “Lamp On” built-in macro on the selected fixtures. Some fixtures have a standardized method for lighting their lamps and if the selected fixtures conform, the macro will initialize the lamp.

Lamp Off – Run the “Lamp Off” built-in macro on the selected fixtures.

Fixture Reset – Run the “Fixture Reset” built-in macro on the selected fixtures to restore their attributes to the default values.

Turn ON relays for selected fixtures – If fixtures have been patched specifying a relay to control power, clicking this option will set the state of the relay to “energized”.

Turn OFF relays for selected fixtures – Likewise to above, clicking this option will “deenergize” the relay for the selected fixtures.

Pull Remote User Data to Live – If level information is showing with a green background (classic view) then the channel is being controlled live by a remote user. Selecting this option will keep the level the same but set control of the channel to the local user. The background color of the level will change from green to red.

Touch Selected Channels – For recording and updating purposes, the software internally flags any selected fixtures that have been manually adjusted from the state they were in. This function will set the “changed” flag for all selected fixtures even if no manual changes have been applied.

Out

Use the “Out” button to set all the selected channel/fixture intensities to 0%.
